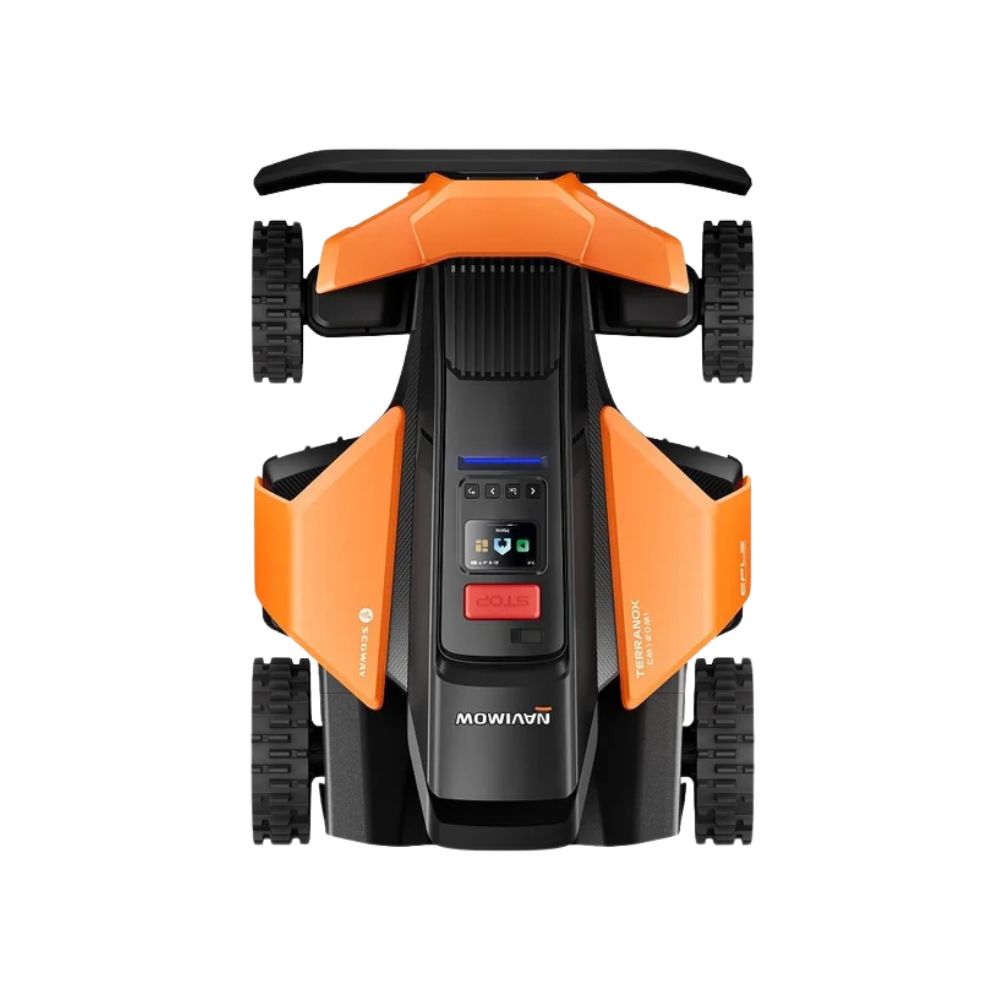

SEGWAY Navimow CM120M1 Terranox Robotic Mower

Navimow Terranox CM120M1 Commercial Robotic Mower

The Navimow Terranox CM120M1 is designed for efficient large-scale commercial lawn maintenance across demanding landscapes. It delivers intelligent autonomous mowing that reduces labour while maintaining consistently high turf quality. This robotic mower is ideal for parks, sports grounds, campuses, and commercial properties. Automating mowing tasks helps reduce operating costs while improving productivity across large outdoor areas.

The Terranox CM120M1 can manage lawns up to 12,000 m², providing reliable coverage across expansive environments. The mower travels at speeds up to 0.9 m/s, ensuring efficient mowing throughout operation. With 145 minutes of runtime, it maintains strong productivity during demanding mowing schedules.

Wire-Free Installation and Smart Mapping

The Terranox CM120M1 offers wire-free installation, eliminating the need for traditional boundary wire systems. This simplifies setup and reduces installation time across large properties. The mower automatically maps mowing areas using intelligent positioning technology.

Navigation is powered by EFLS™ NRTK positioning technology, combining satellite positioning with advanced visual navigation systems. This technology integrates NRTK, 360° vision, and VIO navigation for highly accurate positioning. The mower navigates complex landscapes precisely without perimeter wires or antenna installation. Automatic mapping allows users to define mowing zones quickly and efficiently. This flexibility makes Terranox ideal for large commercial environments requiring adaptable lawn management.

Intelligent Obstacle Detection

The Terranox mower includes VisionFence™ obstacle detection technology, combining a 360° RGB camera with ToF sensors. This system continuously monitors the mower’s surroundings during operation. Obstacles are detected automatically and avoided safely during mowing. The mower can recognise over 200 different objects, improving safety across busy environments. This intelligent system helps protect both the machine and surrounding property.

Powerful All-Terrain Performance

The Terranox CM120M1 uses a four-wheel-drive AWD system with dual independent steering motors. This powerful drive system provides excellent traction across uneven terrain. The mower can climb slopes up to 40 degrees or 84 percent gradient with stability. This capability allows reliable operation across complex landscapes where conventional robotic mowers struggle.

High Performance Cutting System

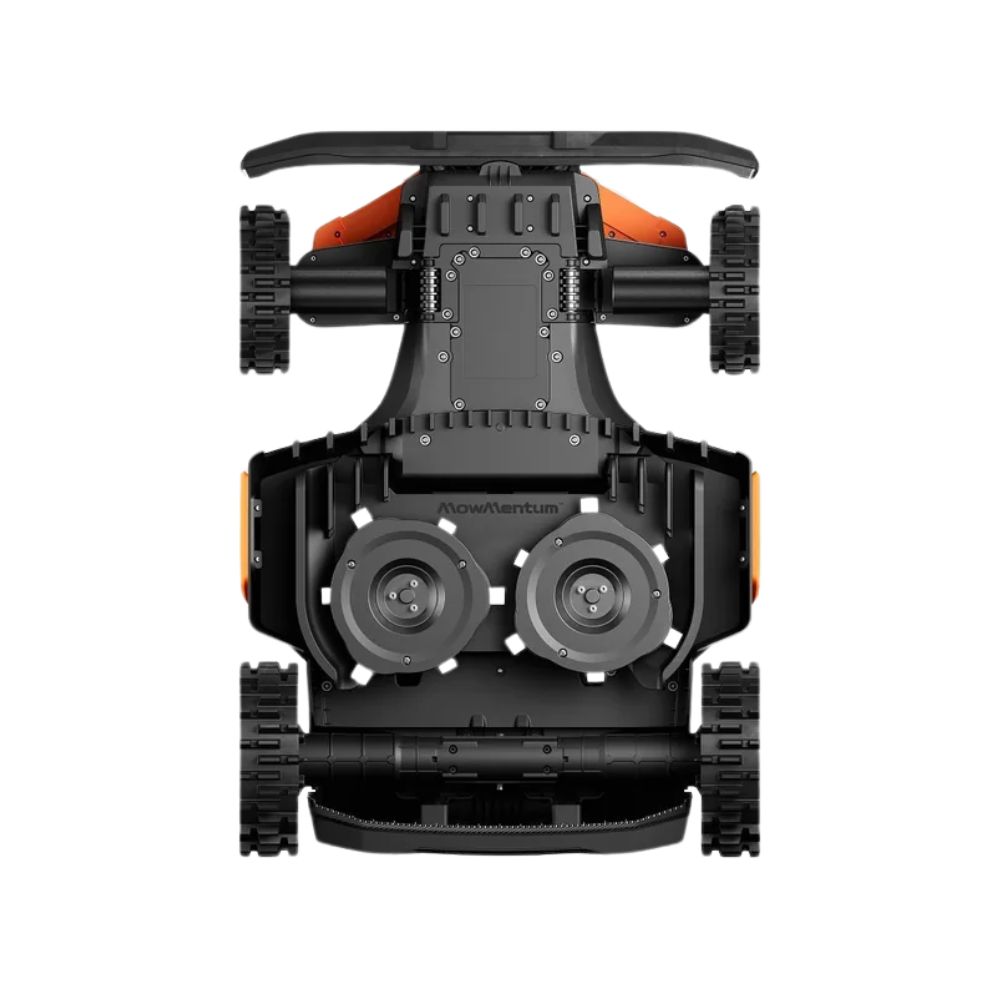

The mower features dual cutting discs with twelve blades, delivering consistent cutting results across different grass conditions. Its 43cm cutting width allows efficient mowing across larger areas. The floating cutting system ensures an even finish on uneven ground. Automatic cutting height adjustment between 2cm and 9.5cm allows flexible lawn management. Anti-clogging cutting discs maintain performance during dense growth.

Quiet and Sustainable Operation

Operating at just 68 dB(A), the Terranox mower works quietly across noise-sensitive environments. This allows mowing during early mornings or evenings without disturbance. The mower produces zero direct emissions, supporting environmentally responsible lawn maintenance.

Smart Fleet Management

The Terranox CM120M1 integrates with NavimowFleet™ fleet management software. Operators can monitor and manage multiple robotic mowers remotely through the app or web portal. Tasks can be assigned, maps edited, and performance tracked easily. This system allows one operator to manage large fleets of robotic mowers simultaneously, improving efficiency across commercial landscapes.
