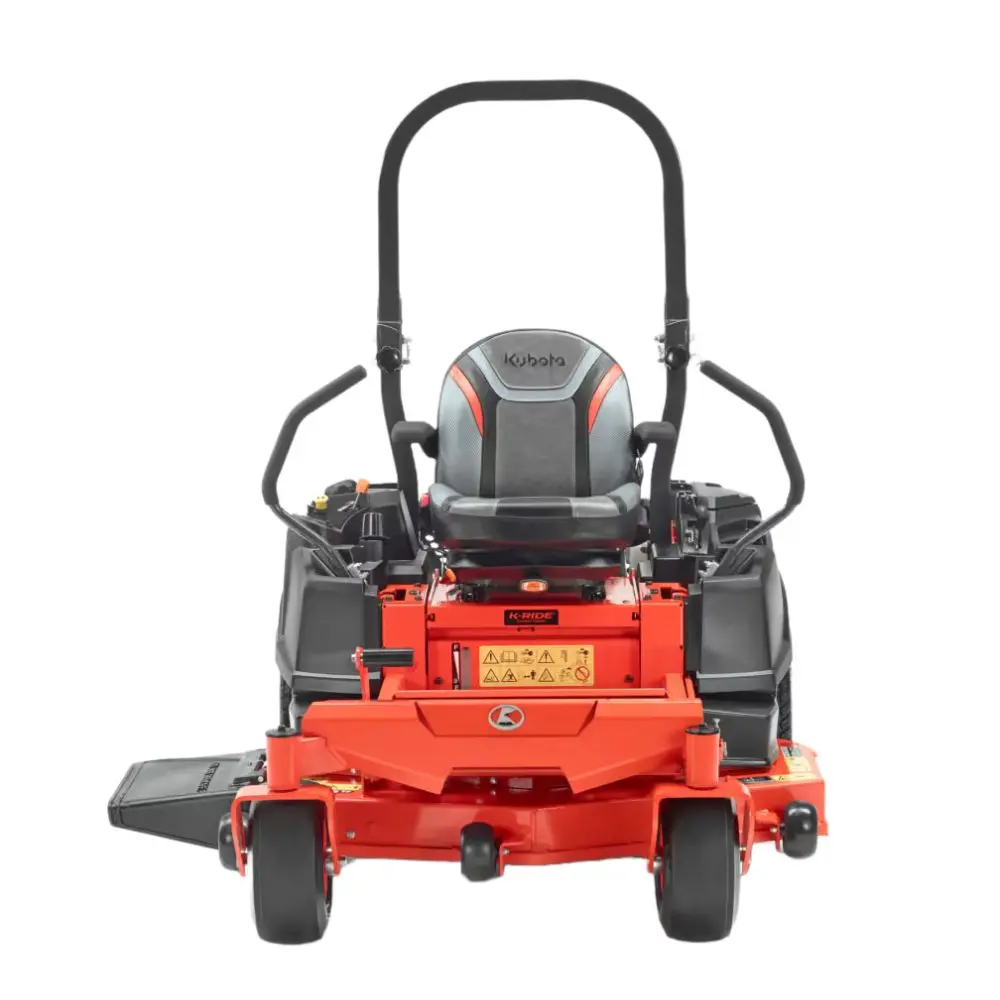

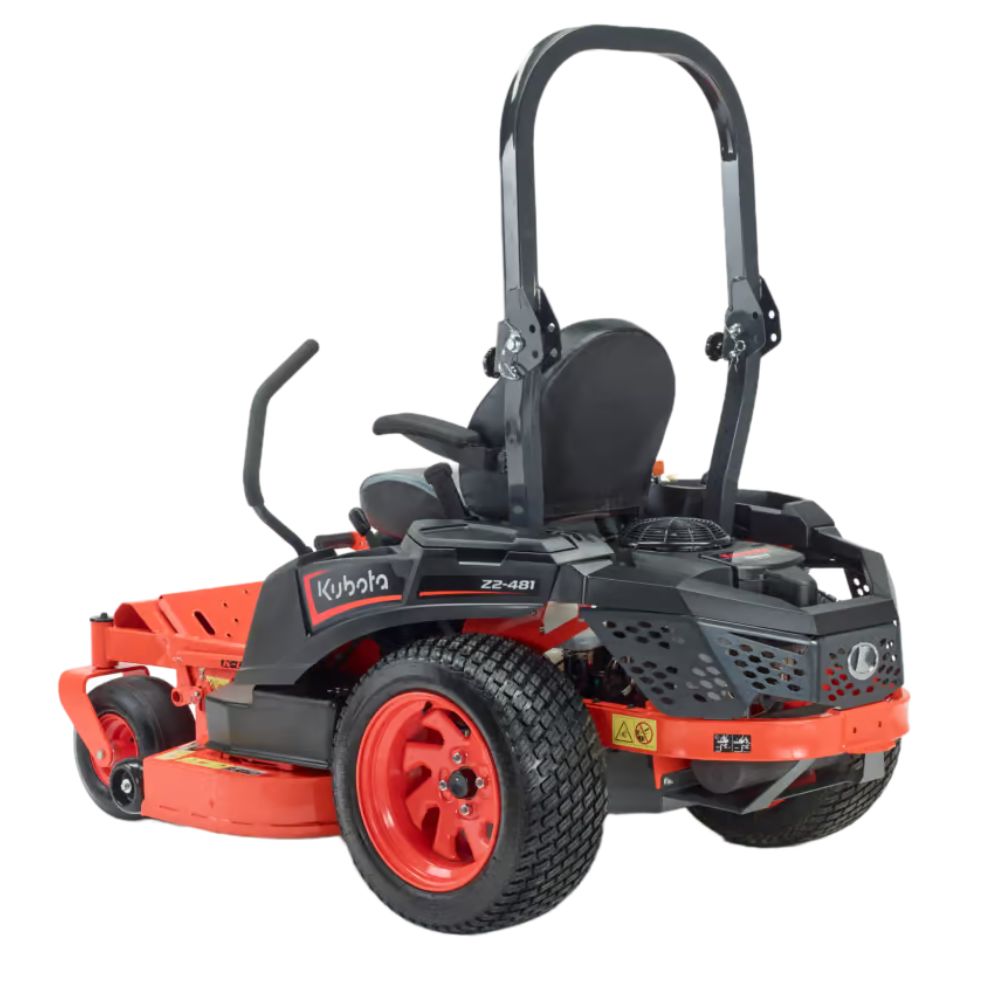

About the KUBOTA Z2-481 Zero-Turn Ride-On Mower
Discover the Kubota Zero Turn Mower, a powerhouse designed for professionals who demand precision and top performance.
Engineered for Excellence
Powered by a potent Kawasaki engine, packing an impressive 21.5 horsepower (16.0 kW) with a robust 90° V-twin that complies with Emissions Stage 5, boasting 726 cc of displacement and a capacious 16-liter fuel tank; the Kubota Z2-481 mower does the job quickly and efficiently.
Enhanced by an electronic spark ignition system and efficient air cooling; the Kubota Z2-481 is the ultimate choice for mowing tasks, no matter the size.
Effortless Maneuverability
The hydrostatic transmission with Hydro Gear EZT® (ZT-2200) model guarantees exceptional control over speed and maneuvering for an effortless mowing experience for the user.
User-Centric Design
This mower elevates user comfort with a deluxe high-back seat, complete with armrests and a 1.5-inch stroke suspension. An hour meter keeps the user in the loop, while the foldable ROPS (Roll Over Protection System) makes sure that safety is a priority when operating the ride on mower. Enjoy added convenience with a drinks holder, storage box, and a handy towing hitch.
Mowing Made Easy
The Kubota Zero Turn Mower boasts a 48-inch cutting width, delivering swift and efficient mowing, saving the user valuable time. Easily tailor the cutting height from 38 to 114 mm in 6 mm increments using the intuitive dial adjustment system. The mower deck is constructed from high-quality materials, ensuring longevity and durability, and it features fixed anti-scalp rollers for a pristine finish.
KUBOTA Z2-481 Zero-Turn Ride-On Mower Technical Information
Engine
- Manufacturer: Kawasaki
- Model: FR651V
- Emissions Stage: 5
- Cylinder: 90° V-twin
- Displacement: 726 cc
- Fuel System: Unleaded petrol
- Ignition System: Electronic spark ignition
- Cooling System: Air
- Gross Power (SAE J1995): 21.5 Hp / 16.0 kW
- Engine Speed (Rated): 3600 rpm
- Engine Hand Accelerator: Yes
- Fuel Tank Capacity: 16 liters
- Fuel Gauge: Sight Window type
Transmission
- Transmission Type: Hydrostatic Transmission
- Forward Speed Range: 0 – 12.9 km/h
- Reverse Speed Range: 0 – 6.3 km/h
Operator Platform
- Seat: 21″ Deluxe High Back Seat with armrests and 1.5″ stroke suspension
- Hour Meter: Yes
- Foldable ROPS (Roll Over Protection System): Yes
- Drinks Holder: Yes
- Storage Box: Yes
- Towing Hitch: Yes
Mower Deck
- Deck Lifting / Lowering: Mechanical Foot Lift Pedal
- Deck Mounting: Quick connect, parallel linkage
- Discharge Direction: Side
- Cutting Width: 1219 mm (48″)
- Number of Blades: 3
- Cutting Height Range: 38 – 114 mm (1.5″ – 4.5″)
- Cutting Height Increments: 6 mm (0.25″)
- Adjustment of Cutting Height: Dial adjustment system
- Anti-Scalp Rollers: Fixed
Brakes and Steering
- Parking Brake: Yes
- Parking Brake Engagement: Console lever
- Steering and Driving Operation: 2 hand levers with height and angle adjustment
PTO (Power Take-Off)
- PTO Drive System: Belt
- Drive Clutch Type: Electro-magnetic
Dimensions and Weights
- Front Tires: 13×6.5-6 Smooth, semi-pneumatic
- Rear Tires: 22×10.0-14 Turf, low profile
- Wheelbase (A): 1195 mm
- Overall Length (B): 2006 mm
- Overall Height (With ROPS Upright) (C): 1738 mm
- Overall Height (With ROPS Folded) (C): 1240 mm
- Overall Width (Without Mower Deck) (D): 1207 mm
- Overall Width (With Mower Deck – Side Discharge) (E): 1552 mm
- Minimum Ground Clearance (With Mower Deck) (F): 110 mm
- Total Weight (With Mower Deck): 391 kg
